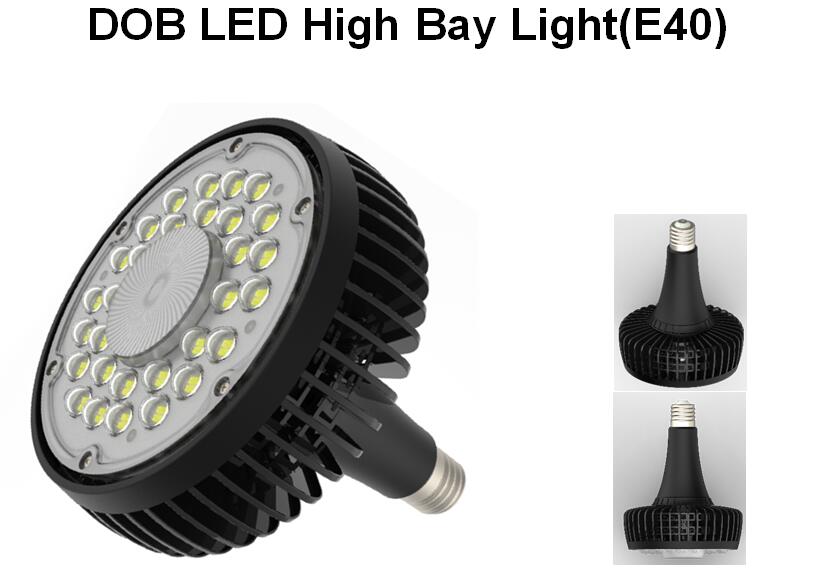

High Brightness Waterproof E40 High Bay Light 100W UFO LED High Bay Lighting

This DOB UFO LED High Bay Light is our newest model with 60° and 90° beam angle for optional. With very beautiful appearance.
We believe whatever you buy it or sell it to your clients, it will help you to win more market.

This light can be sold as SKD product. It is very helpful for your import.

Product Features:

• Invention patent and appearance patent
• AL1070 aluminum fin heat dissipation material
• E40 standard thread interface;
• Fin internal riveting interconnect technology, stable structure and simple appearance Quick rotation lock structure of lamp holder and lamp body, easy to maintain and package；
• Surface electrophoretic paint protection；
• Beam angle:60°/90°
• CE certification
• L70B50>30000Hrs, 3 years warranty；

Model NO. RYGH-HL100W

Product advantages:

1, Our engineer has 15 years experience in led lighting field

2, 6 years focus on AC linear led lighting

3, 3nd Generation Linear IC from Top Taiwan Team-Vendor of AURORA Lighting

4, Driverless led lighting already worked 5-6 years all over the world, failure rate <0.5%, you can sleep well at night because very few complaints

5, Working voltage max 300V, other company max 265V

6, With Over voltage protection, over temperature protection, short circuit protection, over load protection

7, Pass Safety Certification, EMC/EMI

8, 4KVA Surge Protecion on board, 6KVA and 10KVA SPD available

9, 3-5 years warranty,

10, Can be work in harsh environment from minus 30 degrees to 50 degrees

11, High voltage, low working current, no capacitor, no shocking current when turning on, very few interference on power grid, low temperature on power lines

12, Easy for maintenance, easy to change a DOB if failed

13, 99.9% solid components, life time 100, 000 hours, much longer life time than LED

14,much higher cost performance than MEANWELL driver, lumileds and OSRAM Chip warranty 5 years

15, No spark when switching, , which can be used as explosion proof lighting

16, We know and protect our product like our child, and vitnessed the change and improvement of our product in last 6 years

17, We insist on updating our DOB Technology

18, Best SKD solution, you do not need engineer but only need to solder the cable as well as a screw driver.

Stack diagram

standard way, cartons are loaded directly into the container. If customers want to loaded by pallet , we Can customized according to customer requirements

Applications

The product can be used in large-scale lighting such as simple workshops, warehouses and shops, and the replacement of traditional HID and CFL lamps

Packing

Put the lamp body and E40 connector into PE bags separately

Then put the cotton into the carton to fully fix the lamp and then seal the box
